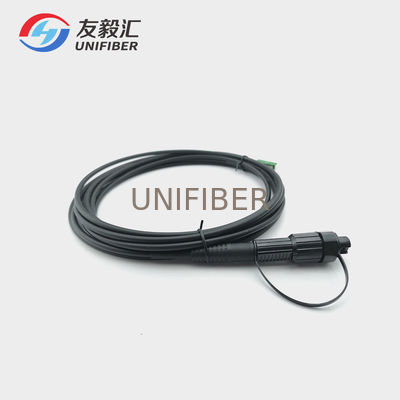

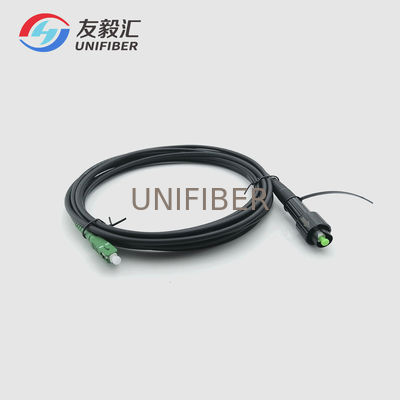

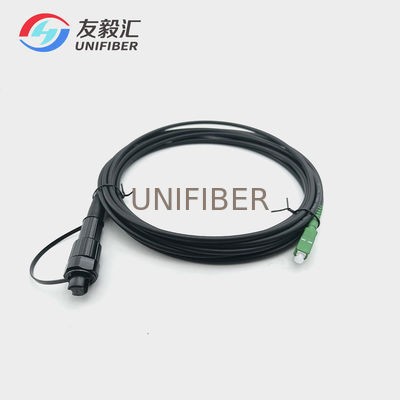

FTTH Outdoor Huawei Mini SC to SC/APC Pre Connectorized Fiber Drop Cable 5.0mm LSZH

Большие изображения : FTTH Outdoor Huawei Mini SC to SC/APC Pre Connectorized Fiber Drop Cable 5.0mm LSZH

Подробная информация о продукте:

Place of Origin:	CHINA
Фирменное наименование:	Unifiber or OEM
Сертификация:	ROHS
Model Number:	Huawei Mini SC Pre Connectorized Drop Cable

Оплата и доставка Условия:

Minimum Order Quantity:	10
Цена:	Подлежит обсуждению
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

контакт

Подробное описание продукта

Product:	Huawei Mini SC Pre Connectorized Drop Cable	Connector:	Huawei Mini SC/APC
Cable Type:	5.0mm Round Cable	Fiber Type:	G657A2
Jacket Material:	LSZH	Length:	Customized

Huawei Compatible Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.This connector always come with 2.0*3.0mm self-supporting drop cable, 3.0mm indoor cable, or 5.0mm round cable.UNIFIBER also provide another mini SC connector with Corning Optitap connector compatiable.

Application

Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring projectFiber optic communications in harsh outdoor environments

Features

Simple assembly requiring no special tools ·
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment ·
Chemical Resistance

Specification

Application	Aerial, Direct Buried, Duct
Cable Type	Outdoor Cable
Fiber Type	G657A1/G657A2/G657B3, customized
Termination	One end or both ends
Product Type	Drop Assemblies
Connector A	Huawei Mini SC APC Connector
Connector B	No connector, SC APC or Huawei Mini SC APC Connector
Cable Length	Customized
Operation Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Insertion Loss	≤0.2dB
Return Loss	≥55dB
